PVC Insulation Flexible Shield Round Control Cable KVV 450/750V in grey color

Product Categories
ECHU Special Wire & Cable (Kunshan) Co., Ltd.
Contact Now

PVC Insulation Flexible Shield Round Control Cable KVV 450/750V in grey color

Brand Name : ECHU

Model Number : KVV, KVV22

Certification : CCC

Place of Origin : China

MOQ : 300Meter

Price : USD0.216-USD0.618/m

Payment Terms : T/T, Western Union

Supply Ability : 1000KM/WEEK

Delivery Time : 10days after receiving deposit

Packaging Details : Splint Reel/Splint BOX

conductor : bare copper

insulation : PVC

Jacket : PVC

Voltage : -30℃ to +70℃

Contact Now

Flexible Round Control Cable

Control cable

PVC insulated sheathed control cable is worked as control, monitor or protect cable under AC rated voltage 450/750V or less than it.

Rated voltage: 450/750V
Long term working promitted temperature: +70 degree
Cable laying temperature could not lower than 0 degree
Suggestion bending radius:
Without sheathed cable should not less than 6x outer diameter
Sheathed cable or copper shield cable should not less than 12Xouter diameter
Shielded flexible cable should not less than 6x outer diameter
Standard: GB9330
Structure:
Conductor: Oxygen-free bare copper
Insulation: PVC
Color: Black number with digital coding, 3 cores or more with green/yellow earth (optional
Inner liner: Non-woven fabric
Sheath: PVC sheath black (RAL9005) or Grey (RAL7001)
Technical data:
Working temperature:
Flexing Installation: -10 degree to + 70 degree
Fixed Insutallation: -30 degree to +70 degree
Working voltage: 450/750V
Testing voltage: 3000V
PVC Insulation Flexible Shield Round Control Cable KVV 450/750V in grey color

Type Size Conductor Weight/KM
KVV22 1.0*2C 1 1.13 133.2
KVV22 1.0*3C 1 1.13 153.3
KVV22 1.0*4C 1 1.13 176.7
KVV22 1.0*5C 1 1.13 200.8
KVV22 1.0*6C 1 1.13 225.3
KVV22 1.0*7C 1 1.13 240.7
KVV22 1.0*8C 1 1.13 265.2
KVV22 1.0*9C 1 1.13 292.8
KVV22 1.0*10C 1 1.13 317.4
KVV22 1.0*11C 1 1.13 337.5
KVV22 1.0*12C 1 1.13 352.9
KVV22 1.0*13C 1 1.13 376.2
KVV22 1.0*14C 1 1.13 391.6
KVV22 1.0*15C 1 1.13 415.7
KVV22 1.0*16C 1 1.13 431.1
KVV22 1.0*17C 1 1.13 489.6
KVV22 1.0*18C 1 1.13 505
KVV22 1.0*19C 1 1.13 520.4
KVV22 1.0*20C 1 1.13 541.2
KVV22 1.0*21C 1 1.13 561.7
KVV22 1.0*22C 1 1.13 591.1
KVV22 1.0*23C 1 1.13 616.9
KVV22 1.0*24C 1 1.13 632.3
KVV22 1.0*25C 1 1.13 653.1
KVV22 1.0*26C 1 1.13 668.5
KVV22 1.0*27C 1 1.13 683.9
KVV22 1.0*28C 1 1.13 708.4
KVV22 1.0*29C 1 1.13 723.8
KVV22 1.0*30C 1 1.13 739.2
KVV22 1.0*31C 1 1.13 764.6
KVV22 1.0*32C 1 1.13 780
KVV22 1.0*33C 1 1.13 795.4
KVV22 1.0*34C 1 1.13 821.3
KVV22 1.0*35C 1 1.13 836.7
KVV22 1.0*36C 1 1.13 852.1
KVV22 1.0*37C 1 1.13 934.5
KVV22 1.0*38C 1 1.13 962.4
KVV22 1.5*2C 1 1.38 158.4
KVV22 1.5*3C 1 1.38 186.1
KVV22 1.5*4C 1 1.38 217.7
KVV22 1.5*5C 1 1.38 250.3
KVV22 1.5*6C 1 1.38 283.3
KVV22 1.5*7C 1 1.38 305.5
KVV22 1.5*8C 1 1.38 338.5
KVV22 1.5*9C 1 1.38 375.2
KVV22 1.5*10C 1 1.38 408.2
KVV22 1.5*11C 1 1.38 436
KVV22 1.5*12C 1 1.38 458.1
KVV22 1.5*13C 1 1.38 489.7
KVV22 1.5*14C 1 1.38 511.9
KVV22 1.5*15C 1 1.38 544.4
KVV22 1.5*16C 1 1.38 566.6
KVV22 1.5*17C 1 1.38 637.8
KVV22 1.5*18C 1 1.38 660
KVV22 1.5*19C 1 1.38 682.1
KVV22 1.5*20C 1 1.38 710.7
KVV22 1.5*21C 1 1.38 738.9
KVV22 1.5*22C 1 1.38 777.7
KVV22 1.5*23C 1 1.38 812.3
KVV22 1.5*24C 1 1.38 834.5
KVV22 1.5*25C 1 1.38 863
KVV22 1.5*26C 1 1.38 885.2
KVV22 1.5*27C 1 1.38 907.3
KVV22 1.5*28C 1 1.38 940.3
KVV22 1.5*29C 1 1.38 962.5
KVV22 1.5*30C 1 1.38 984.6
KVV22 1.5*31C 1 1.38 1018.7
KVV22 1.5*32C 1 1.38 1040.8
KVV22 1.5*33C 1 1.38 1063
KVV22 1.5*34C 1 1.38 1097.6
KVV22 1.5*35C 1 1.38 1119.8
KVV22 1.5*36C 1 1.38 1142
KVV22 1.5*37C 1 1.38 1240
KVV22 1.5*38C 1 1.38 1277
KVV22 2.5*2C 1 1.78 198.2
KVV22 2.5*3C 1 1.78 239.3
KVV22 2.5*4C 1 1.78 285
KVV22 2.5*5C 1 1.78 331.9
KVV22 2.5*6C 1 1.78 379.4
KVV22 2.5*7C 1 1.78 413.7
KVV22 2.5*8C 1 1.78 461.2
KVV22 2.5*9C 1 1.78 513.1
KVV22 2.5*10C 1 1.78 560.6
KVV22 2.5*11C 1 1.78 601.7
KVV22 2.5*12C 1 1.78 636
KVV22 2.5*13C 1 1.78 681.7
KVV22 2.5*14C 1 1.78 716
KVV22 2.5*15C 1 1.78 762.9
KVV22 2.5*16C 1 1.78 797.2
KVV22 2.5*17C 1 1.78 888.5
KVV22 2.5*18C 1 1.78 922.8
KVV22 2.5*19C 1 1.78 957.1
KVV22 2.5*20C 1 1.78 999.2
KVV22 2.5*21C 1 1.78 1040.8
KVV22 2.5*22C 1 1.78 1095.3
KVV22 2.5*23C 1 1.78 1144.7
KVV22 2.5*24C 1 1.78 1179
KVV22 2.5*25C 1 1.78 1221
KVV22 2.5*26C 1 1.78 1255.3
KVV22 2.5*27C 1 1.78 1289.6
KVV22 2.5*28C 1 1.78 1337
KVV22 2.5*29C 1 1.78 1371.3
KVV22 2.5*30C 1 1.78 1405.6
KVV22 2.5*31C 1 1.78 1454.3
KVV22 2.5*32C 1 1.78 1488.6
KVV22 2.5*33C 1 1.78 1522.9
KVV22 2.5*34C 1 1.78 1572.4
KVV22 2.5*35C 1 1.78 1606.7
KVV22 2.5*36C 1 1.78 1641
KVV22 2.5*37C 1 1.78 1763
KVV22 2.5*38C 1 1.78 1815.2

Wholesale PVC Insulation Flexible Shield Round Control Cable KVV 450/750V in grey color from china suppliers

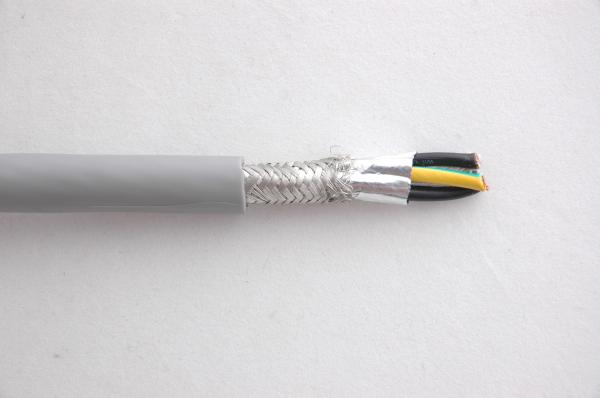

PVC Insulation Flexible Shield Round Control Cable KVV 450/750V in grey color Images
