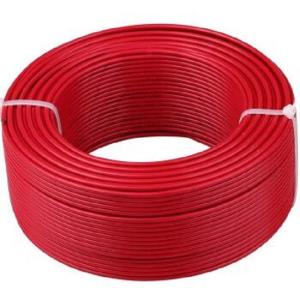

ROHS PVC Electrical Single core Cable UL1617 105℃ 600V with UL Certificate in Red Color

Product Categories
ECHU Special Wire & Cable (Kunshan) Co., Ltd.
Contact Now

ROHS PVC Electrical Single core Cable UL1617 105℃ 600V with UL Certificate in Red Color

Payment Terms : T/T

Color : Red/black/white/yellow/green

Brand Name : ECHU

Model Number : UL1617

Certification : UL

Place of Origin : China

MOQ : 100meter

Price : USD0.123-USD0.336/M

Packaging Details : in roll

Delivery Time : within 10days

Supply Ability : 100000km/week

Contact Now

UL CERT. No.:E312831

UL1617 Hook up Wire Description:

Related temperature: 105℃
Related voltage: 600V

Reference standards: UL Subject 758 & UL 1581/CSA C22.2 NO.210.05
Tinned or bare, stranded or solid copper conductor 5AWG-26AWG
Insulation: Color-coded PVC insulation
Sheath: Rohs PVC
Uniform insulation thickness to ensure easy stripping and cutting
Passes UL VW-1 flame test and CSA FT1 flame test


Application:
For internal wiring of electronic and electric equipment. can be substituted by UL10938
the electric normal cable is 5AWG/6AWG/7AWG/8AWG/9AWG/ 10AWG/11AWG/12AWG/13AWG/14AWG/16AWG/17AWG/18AWG/20AWG/22AWG/24AWG/26AWG 600 V..

ROHS PVC Electrical Single core Cable UL1617 105℃ 600V with UL Certificate in Red Color

ROHS PVC Electrical Single core Cable UL1617 105℃ 600V with UL Certificate in Red Color

TYPE
Sec. AWG
Copper Conductor/Tinned copper
Con. No.
Cond.Dia.
UL1617
26
7
0.16
UL1617
24
11
0.16
UL1617
22
17
0.16
UL1617
20
26
0.16
UL1617
18
41
0.16
UL1617
17
51
0.16
UL1617
16
26
0.254
UL1617
15
33
0.254
UL1617
14
41
0.254
UL1617
13
52
0.254
UL1617
12
65
0.254
UL1617
11
82
0.254
UL1617
10
104
0.254
UL1617
9
94
0.30
UL1617
8
118
0.30
UL1617
7
147
0.30
UL1617
6
189
0.30
UL1617
5
238
0.30

Wholesale ROHS PVC Electrical Single core Cable UL1617 105℃ 600V with UL Certificate in Red Color from china suppliers
